Platform RadICS B is a digital platform designed for industrial applications. It is suitable as technological foundation to non-safety I&C systems in nuclear and other hazardous industries like petrochemical, thermal power plants, etc. The Platform RadICS B is robust, flexible, and scalable, its components are designed to the latest IEC standards for non-safety service in industrial systems.
The Platform consists of Logic Module, basic input/output (I/O) modules, and specialty modules all housed in a seismically qualified chassis. Platform RadICS B is a complimentary solution to RadICS FPGA-based Platform for safety applications to implement the whole chain of Power Unit I&C equipment on the same technology family concept.
|
RadICS B Digital I&C Platform Component / Module name |
Purpose |
|
|
Analog Inputs Module |
AIM |
Receiving DC signals up to 100 mА. |
|
Analog Outputs Module |
AOM |

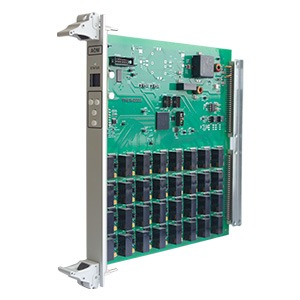

Generating standard analog output signals, such as DC in the ranges 0-5, 0-20, 4-20 mА into loads up to 50 Ω. |
|
Discrete Inputs Module |
DIM |
Receiving discrete signals of the “dry contact” type with a voltage of up to 48V. |
|
Discrete Outputs Module |
DOM |
Generating discrete signals of the “dry contact” type with a switching capacity of 0,2 A at a voltage of up to 48V . |
|
Logic Module |
LM |
The core of the Platform. FPGA consists of the two levels of function implementation - Platform Level and User Application Logic (can be changed in the process of system configuration). The module is the master and controls the operation of the entire channel (chassis). |
|
Optical Communication Module |
OCM |
Providing inter-channel communication via optical channels to develop (2, 3, and 4- 4-channel) systems. |
|
Resistance Temperature Detector Inputs Module |
RIM |
Receiving resistance signals from temperature sensors of platinum type and copper type. |
|
Thermocouple Inputs Module |
TIM |
Receiving low DC voltage signals up to 100 mV (including thermocouple voltages of various types). |
