RadICS Platform Configuration Tool (RPCT) is an integrated environment for developing I&C projects based on the digital RadICS Platform. It combines development, testing, simulation, monitoring, and maintenance tools in a single software suite.
Key Capabilities

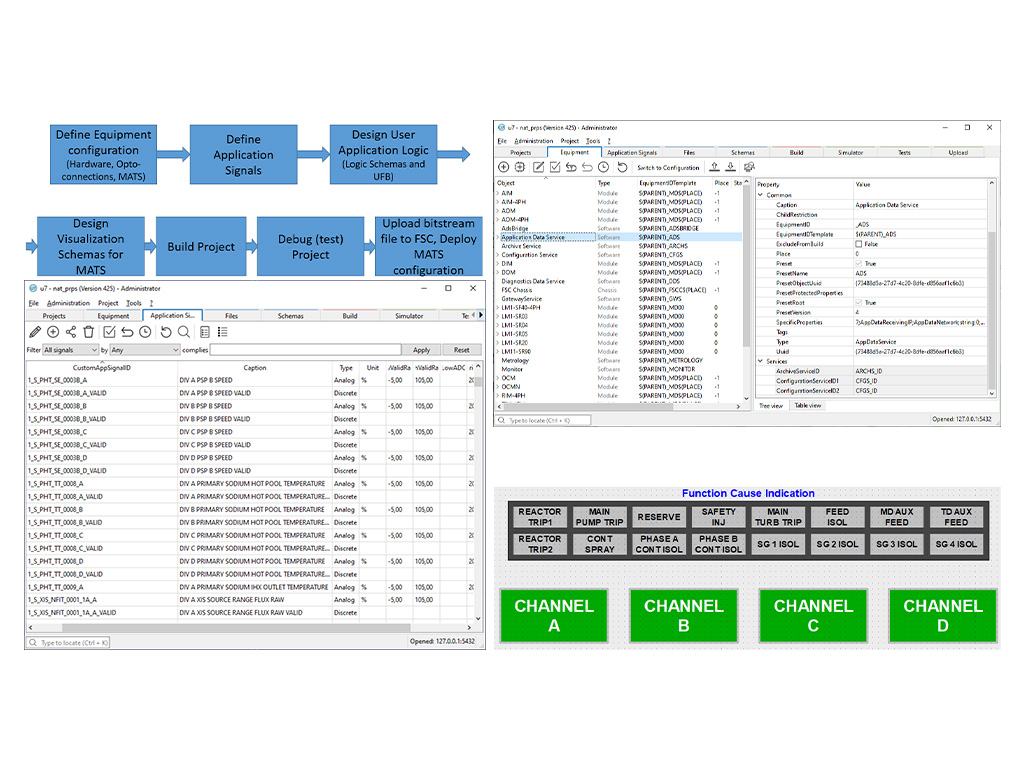

Development Tools
- Editors, compiler, and simulator
- Configure equipment, define Application Logic, design HMIs, compile and test the project
Qualified Compiler
- Verifies all project components
- Highlights errors and warnings in logic diagrams
- Provides detailed error descriptions
Multi-User Collaboration
- Network access for multiple users
- Built-in version control and change tracking
- Compare change sets and generate difference reports
Simulation & Testing
- Software-based simulation of logic modules
- Debug Application Logic without hardware
- Test HMI interfaces and override signal values

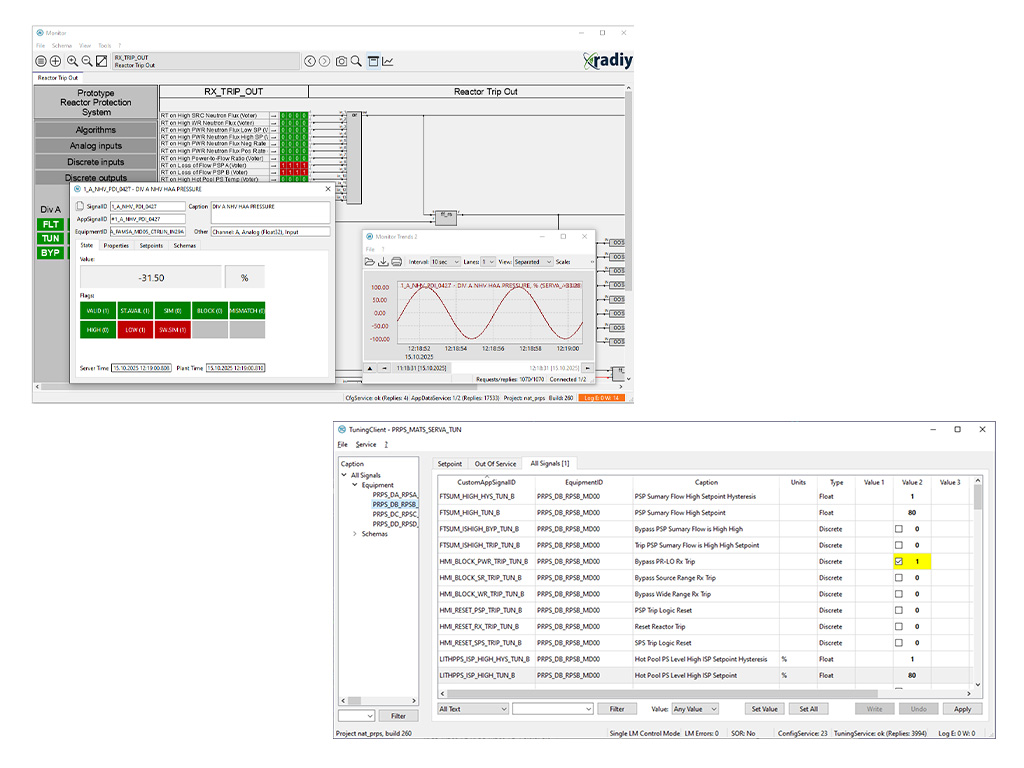

Monitoring & Tuning (MATS)
- Acquire and archive parameters
- Display diagrams, trends, and reports
- Tune parameters and access maintenance tools
- Operates on both Linux and Windows
